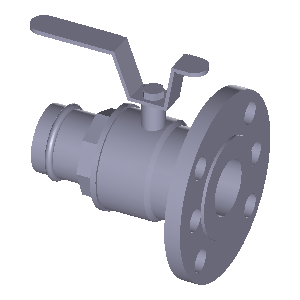

    The Isolator w/ Rotating Flange
    Full Port Forged Brass Uni-Flange Ball Valve
    w/ Detachable Rotating Flange,
    Adjustable Packing Gland,
    Nuts & Bolts
    *Fits Standard & High Velocity Pumps

    Unit of Measure

    Specifications

    Type

    		 N/A Ball Valve

    Valve Size

    		 N/A 2

    Connection Type

    		 N/A Press x Rotating Flange

    Valve Operator

    		 N/A Lever Handle

    Weight

    		 N/A 5.28 lb

    Performance

    Maximum Operating Pressure

    		 N/A 250 psi

    Materials

    Flanged Body Material

    		 N/A Brass

    End Cap Material

    		 N/A Brass

    Seat Material

    		 N/A PTFE

    Ball Material

    		 N/A Brass HCP

    Stem Material

    		 N/A Brass

    Packing Gland Material

    		 N/A Brass

    Lever Handle Material

    		 N/A Steel CP

    O-Ring Material

    		 N/A EPDM

    Hnadle Nut Material

    		 N/A Stainless Steel

    Handle Jacket Material

    		 N/A Vinyl

    Rotaring Flange Material

    		 N/A Ductile Iron

    Rotaring Flange Ring Material

    		 N/A Stainless Steel

    Flange Bolts & Nuts Material

    		 N/A Steel ZP

    Dimensions

    Inside Diameter (A)

    		 N/A 2 in

    Length (B)

    		 N/A 5 7/8 in

    Height (C)

    		 N/A 3.50 in

    Handle Length (D)

    		 N/A 3 3/8 in

    Flange Thickness (E)

    		 N/A 1/2 in

    Hole Diameter (F)

    		 N/A 9/16 in

    Flange Inside Diameter (G)

    		 N/A 2

    Hole Pitch (H)

    		 N/A 4 in

    Flange Outside Diameter (I)

    		 N/A 5 1/4 in
